Product Description
- REAR PICATINNY ADAPTER BY REHV ARMS INCLUDED
- HINGE - USES THE HD SAMSON HINGE FOR IT'S SMALL MOUNTING FOOTPRINT AND PROVEN DESIGN
- 10 DIFFERENT EXTENSIONS FOR CONFIGURING DIFFERENT LENGTHS AND OFFSETS
- STOCK CAN FOLD LEFT OR RIGHT BY FLIPPING HINGE
- 5 BUTTPLATE OPTIONS
- MODULAR CHEEK RISER OPTION
- QD SLING MOUNT OPTION
We have put together these Modular stock kits specifically for the Keltec P50. They are available in multiple configurations to fit each users specific requirements. Choose any one of our 10 different extension arms and any of our 5 different buttplates. Ships with the Rehv Arms Picatinny rear stock adapter.
The P50 has limited rear space for mounting a stock. In addition, the rear charging handle makes this even more difficult. For this reason we use the low-profile Samson hinge for the P50 applications. The Samson hinge has a push-button latch in the deployed position and a tensioned hinge-pin for the folded position.
The offset extension arms are available in straight or offset, and in 5 different lengths. Each offset extensions allows the user to configure their stock in 4 different setups as shown in the appropriate product images below. This allows the user to raise or lower their cheek rest, avoid obstacles like selector controls or ejection ports, and raise or lower the buttplate on the shoulder.
All components are machined from aluminum and anodized low-gloss black. Made in the USA!
NOTE: Extension lengths are actual length of the extensions. To calculate overall length of chosen combination, use the following INFO:
| ITEM | LENGTH TO ADD |
| -Hinge | +7/16" |
| -Minimalist buttplate | + 1/2" |
| -A3 aluminum buttplate with rubber buttpad | + 11/16" |
| -Aluminum buttplate with Magpul buttpad #1 | + 1-3/8" |
| -Aluminum buttplate with Magpul buttpad #2 | + 1-5/16" |
| -Aluminum XTENDO low-profile buttplate w/pad | + 2.50" |
Buttplate rear pad dimensions:
| BUTTPLATE | DIMENSIONS |
| -Minimalist buttplate | 1.25" x 4.50" |
| -A3 aluminum buttplate with rubber buttpad | 1.25" x 4.50" |
| -Aluminum buttplate with Magpul buttpad #1 | 1.50" x 5.00" |
| -Aluminum buttplate with Magpul buttpad #2 | 1.50" x 5.25" |
| -Aluminum XTENDO low-profile buttplate w/pad | 0.75" x 4-3/8" |
|

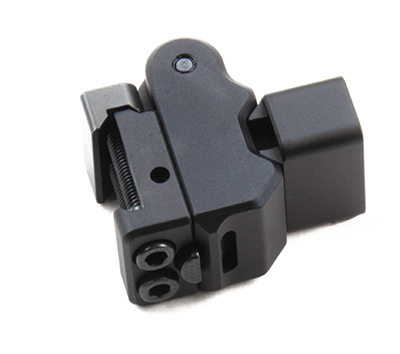

Heavy-duty Samson hinge: This hinge uses a push button latch to fold. In the folded position the hinge has a tensioned hinge-pin that holds it folded. The user can simply pull the stock for deployment. |
|
|

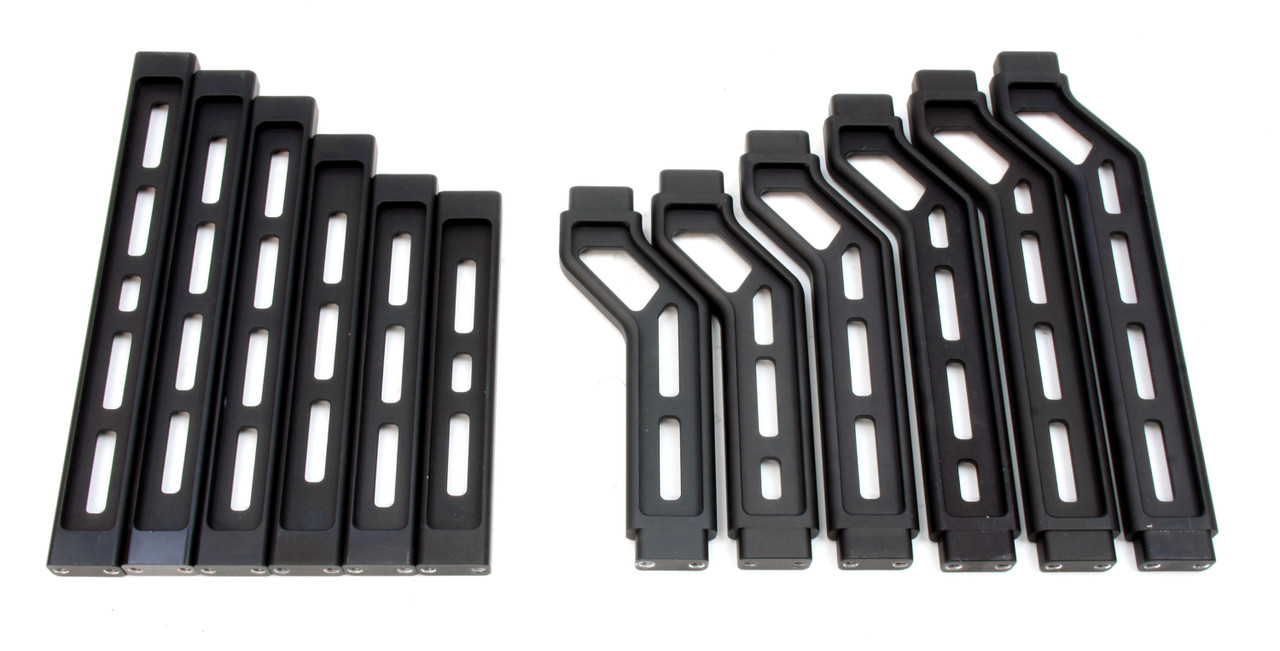

EXTENSION ARMS: Our extension arms are available in both straight or offset configurations. Straight extensions simply extend rearward, positioning the brace end in line with the hinge point. Offset extensions offset one end 1.25" from center. Each end is symmetrical, allowing the user to mount it in 4 different positions as shown to the right. These offsets can be used to clear objects such as an ejection port or charging handle, raise/lower a cheek weld for different height optics, or position the brace end higher or lower to suit your shooting preference.
|
 |
|

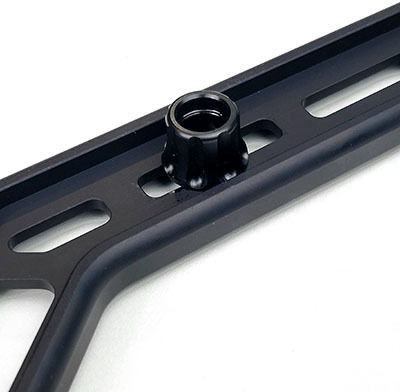

All extension arms incorporate M-LOK slots along the full length of the arm. This allows the user to mount our VIS steel QD (Quick-disconnect) sling mount anywhere on the extension. |
 |

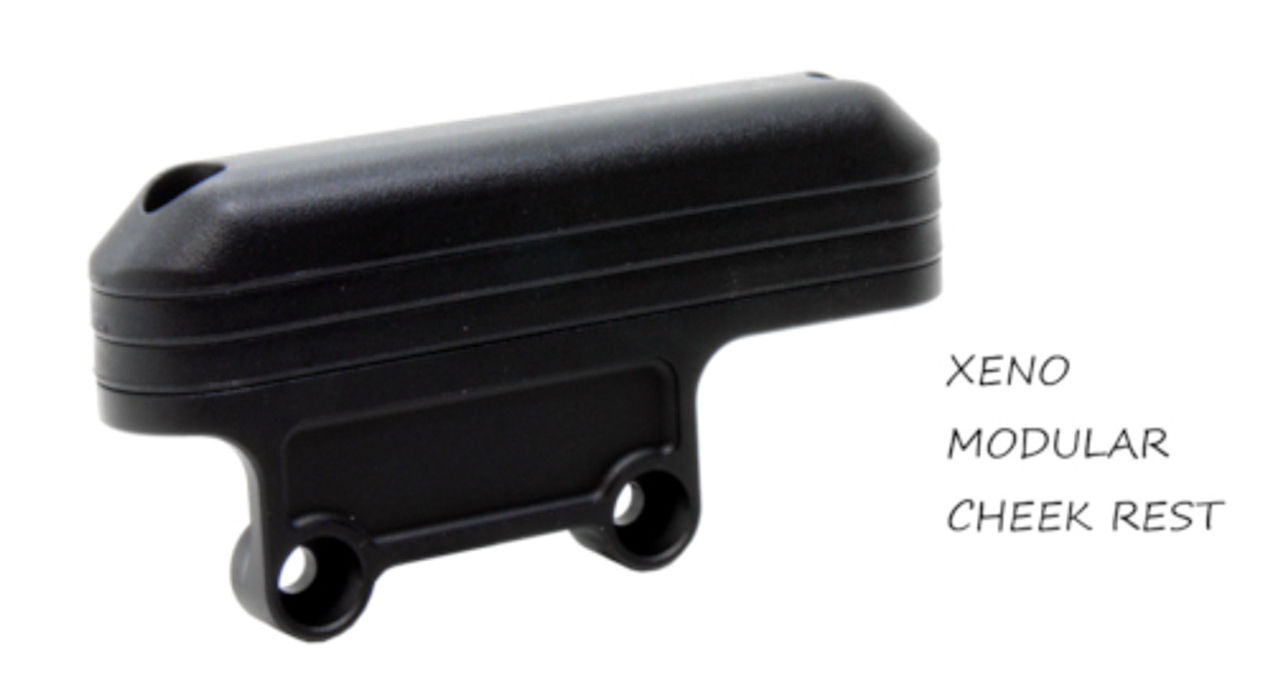

| CHEEK RESTS: The Xeno Modular Cheek Rest has three heights - 5/8", 7/8", or 1-1/8". The XENO mounts via M-LOK and also has an offset that allows the cheek rest to be positioned 1" offset of the mount, if necessary. The XENO is machined from aluminum with injection-molded Polymer spacers and cheek rest.
|
 |
All components are machined from aluminum and anodized low-gloss black. Made in the USA!
