Product Description
- Bolt-on 1913 Picatinny adapter by Rhev Arms included with brace
- Heavy-duty low-profile Samson hinge for optimal charging handle clearance
- Can fold left or right depending on how the hinge is mounted
- Modular design for individual personalization
- Offset extension can be mounted in 4 different configurations
- 6061 construction with Type II low gloss anodized finish

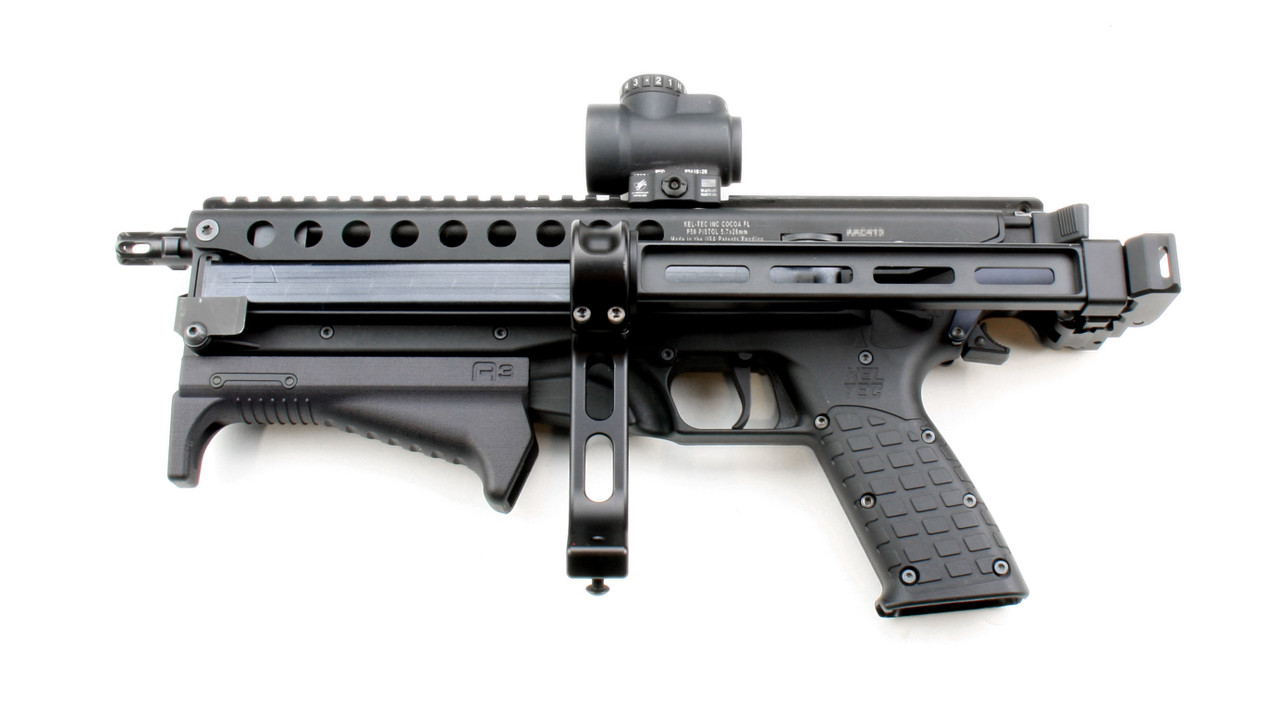

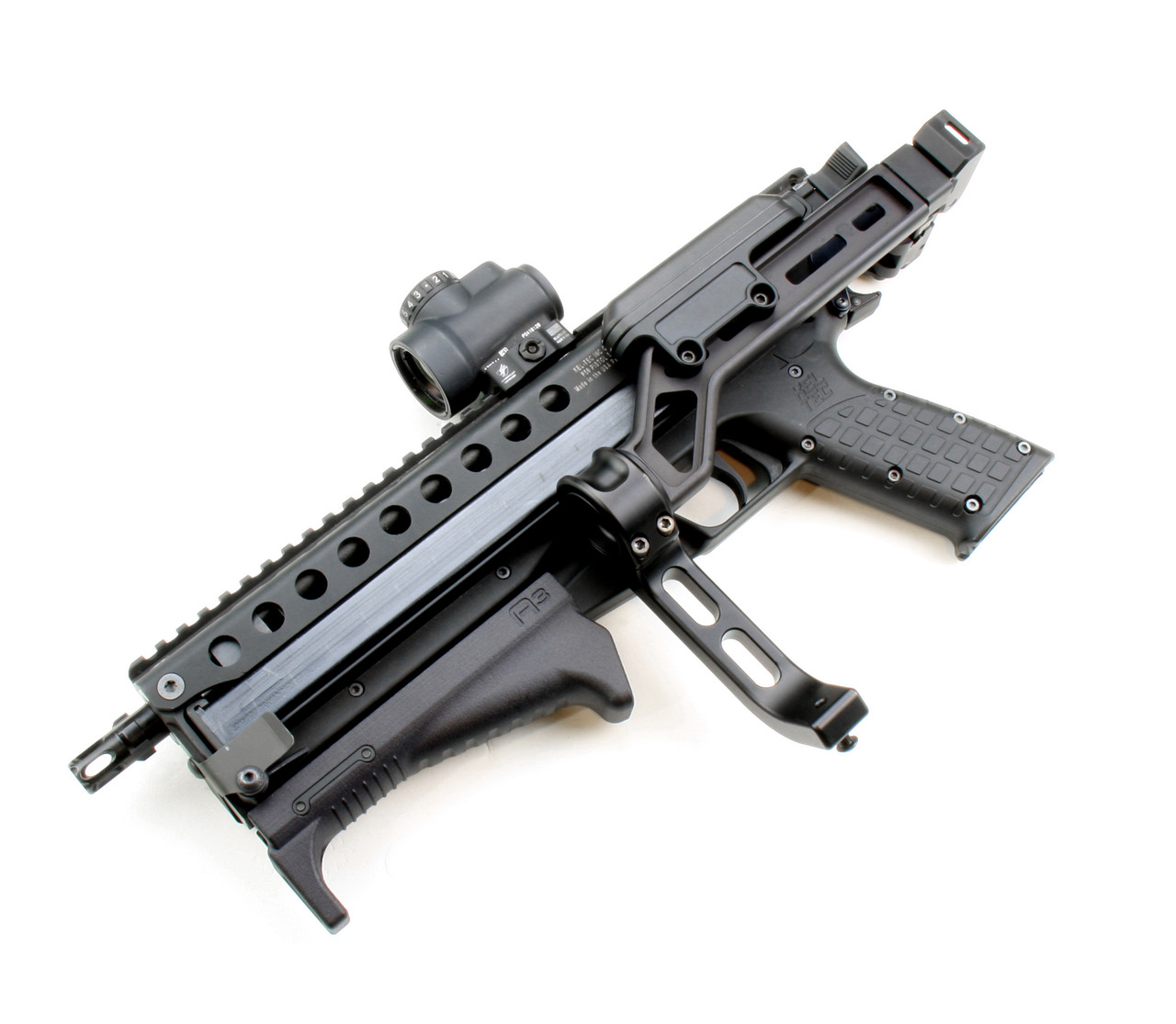

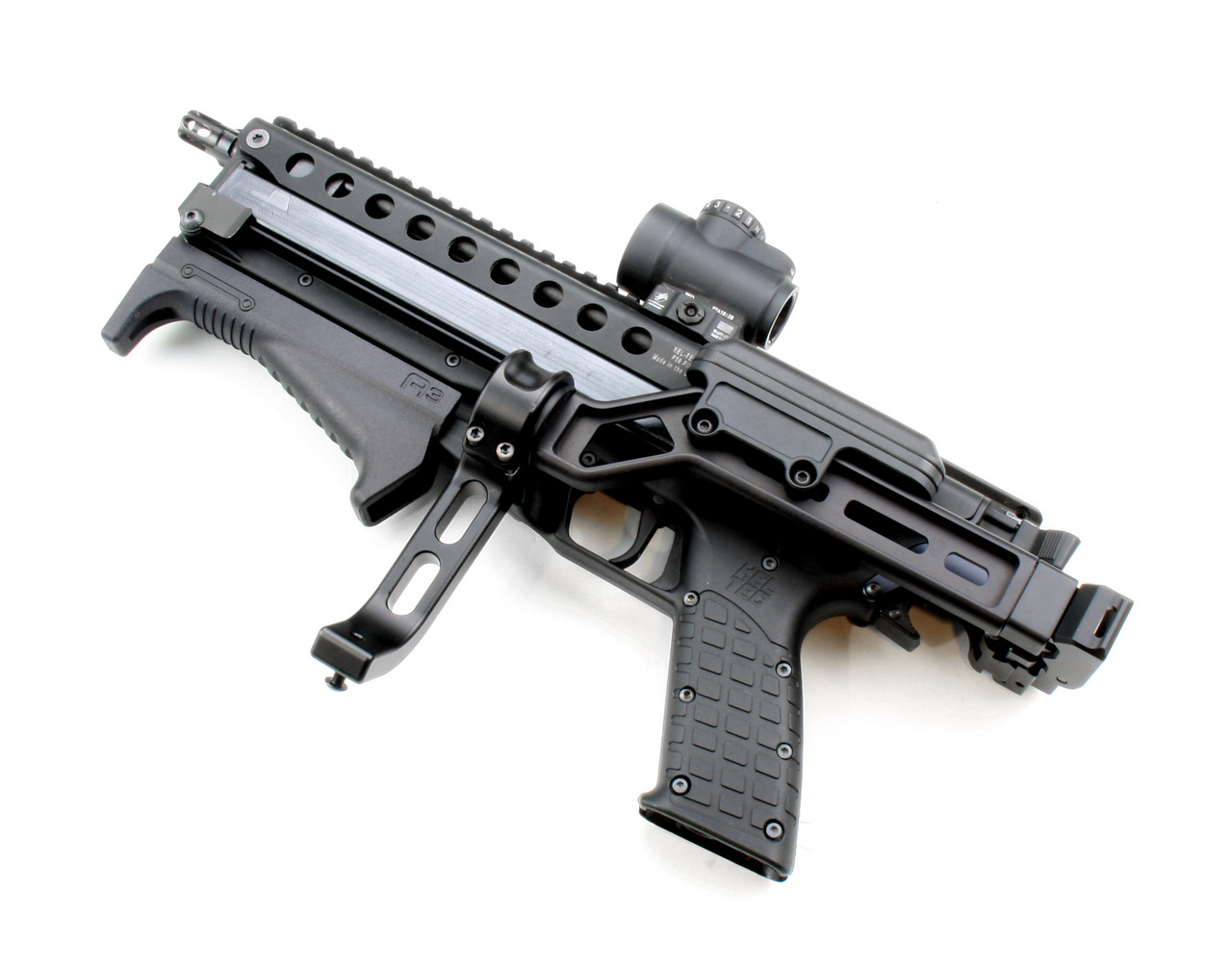

The P50 brace from A3 Industries attaches to the receiver via a unique Picatinny adapter by Rehv Arms. The heavy-duty Samson hinge uses a push button to latch in the deployed position, and tension to keep it folded. Our modular brace extensions are available in straight or offset designs, depending on preference. The offset design allows up to 4 different mounting positions to help with optic height and cheek rest position.
|

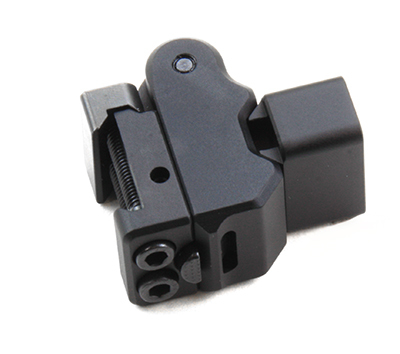

HINGE: The Samson heavy-duty aluminum hinge works great for this application. The low-profile mount clears the charging handle with ease and it can be mounted to fold left or right, depending on your preference. With a push button release and tensioned hinge-pin, the hinge locks up solid and deploys easily. |
 |

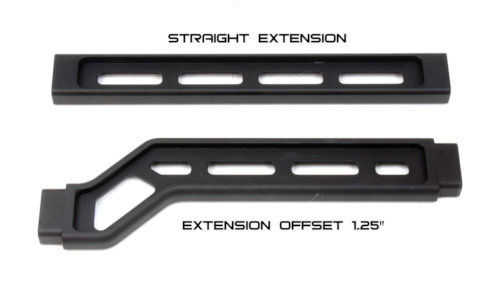

| EXTENSION ARMS: Our extension arms are available in both straight or offset configurations. Straight extensions simply extend rearward, positioning the brace end in line with the hinge point. Offset extensions offset one end 1.25" from center. Each end is symmetrical, allowing the user to mount it in 4 different positions. These offsets can be used to clear objects such as an ejection port or charging handle, raise/lower a cheek weld for different height optics, or position the brace end higher or lower to suit your shooting preference. |  |

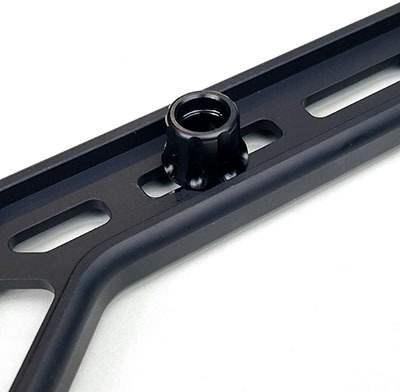

| All extensions utilize M-LOK slots that allow the user to install our optional Quick-disconnect (QD) full-rotation sling mount. These slots also permit mounting of pur popular XENO Modular cheek riser. |  |

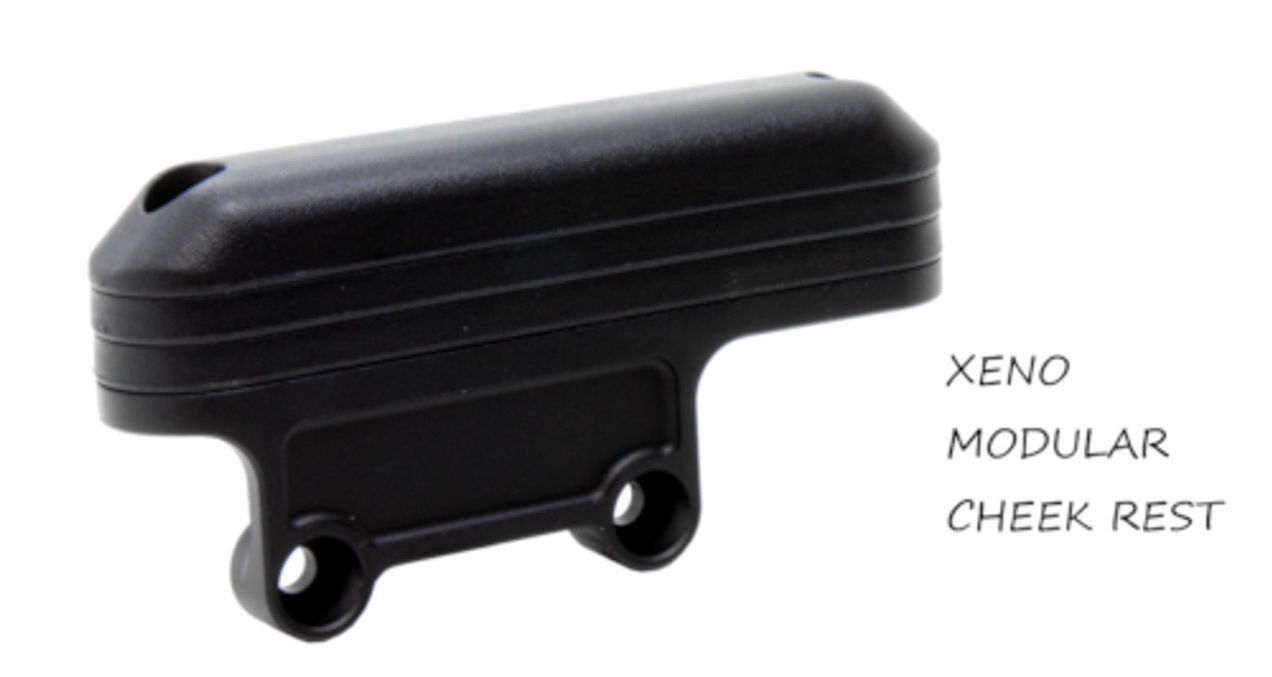

| CHEEK RESTS: The Xeno Modular Cheek Rest has three heights - 5/8", 7/8", or 1-1/8". The XENO mounts via M-LOK and also has an offset that allows the cheek rest to be positioned 1" offset of the mount, if necessary. The XENO is machined from aluminum with injection-molded Polymer spacers and cheek rest. |  |

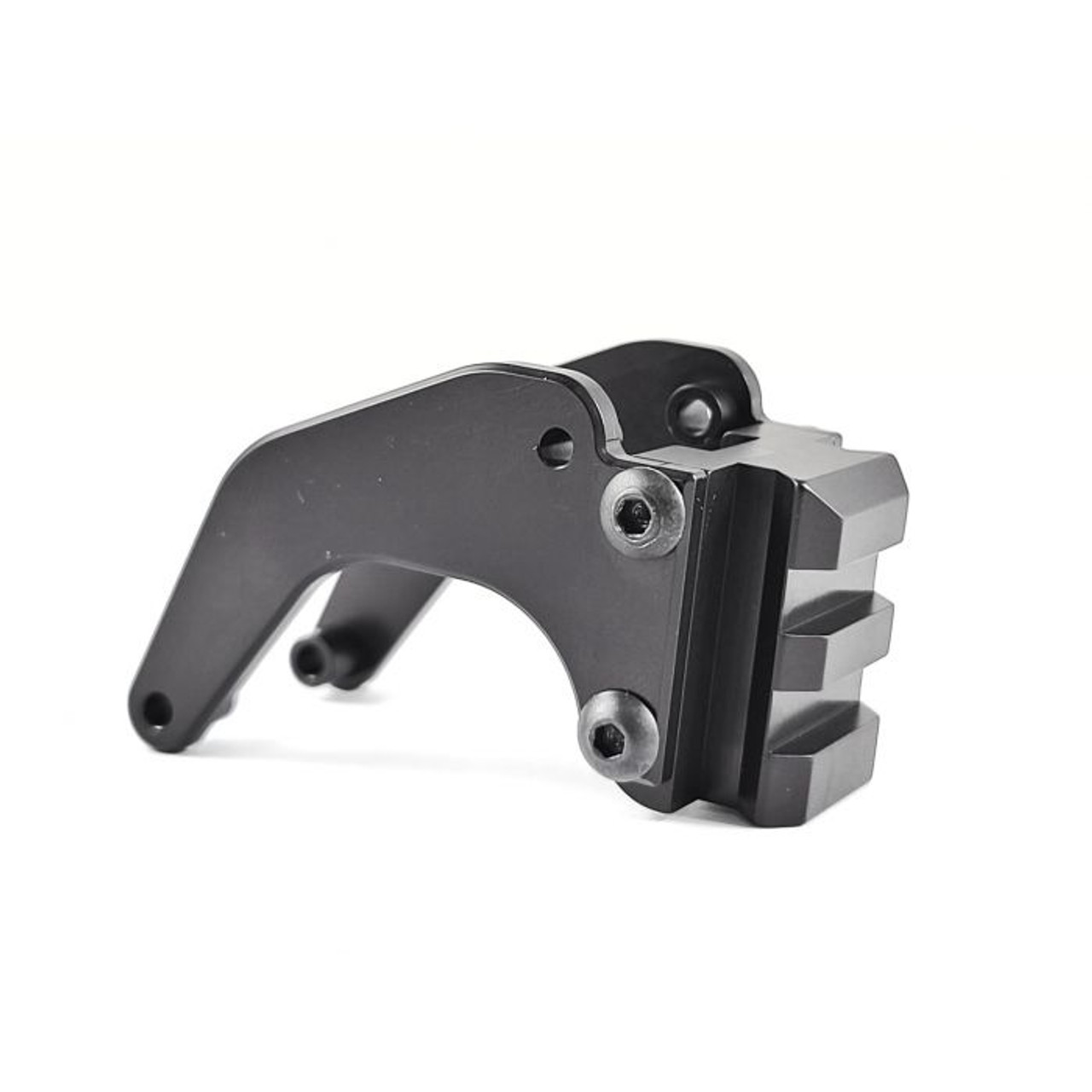

| REAR ADAPTER INCLUDED: The Rhev Arms rear Picatinny (1913) Adapter for the Keltec P50 easily installs in 5-10 minutes and is very sturdy once installed. Made from T7075-T6 machined aluminum. ZERO modifications needed to your gun, uses the factory screw locations. |  |
NFA BRACE DISCLAIMER: The A3 Modular Brace is not designed nor should it be used as a stock or to discharge a firearm from the shoulder. The A3 Modular Brace is to be used as a pistol stabilizing arm brace. You are responsible for the proper and legal use of the A3 Modular Brace at all times. If you have purchased an A3 Modular Brace and wish to utilize the modularity function with parts designed for our Modular Stock , please be aware of all federal, state and local laws and ordinances that you must obey. The National Firearms Act regulates items such as short barreled rifles, and by utilizing components of the A3 Industries Modular Brace as a firearm stock, you may be subjecting your firearm and yourself to NFA laws and regulations. It is your responsibility to obey all laws and properly register any NFA items you may create with use of A3 Industries products.
