Product Description

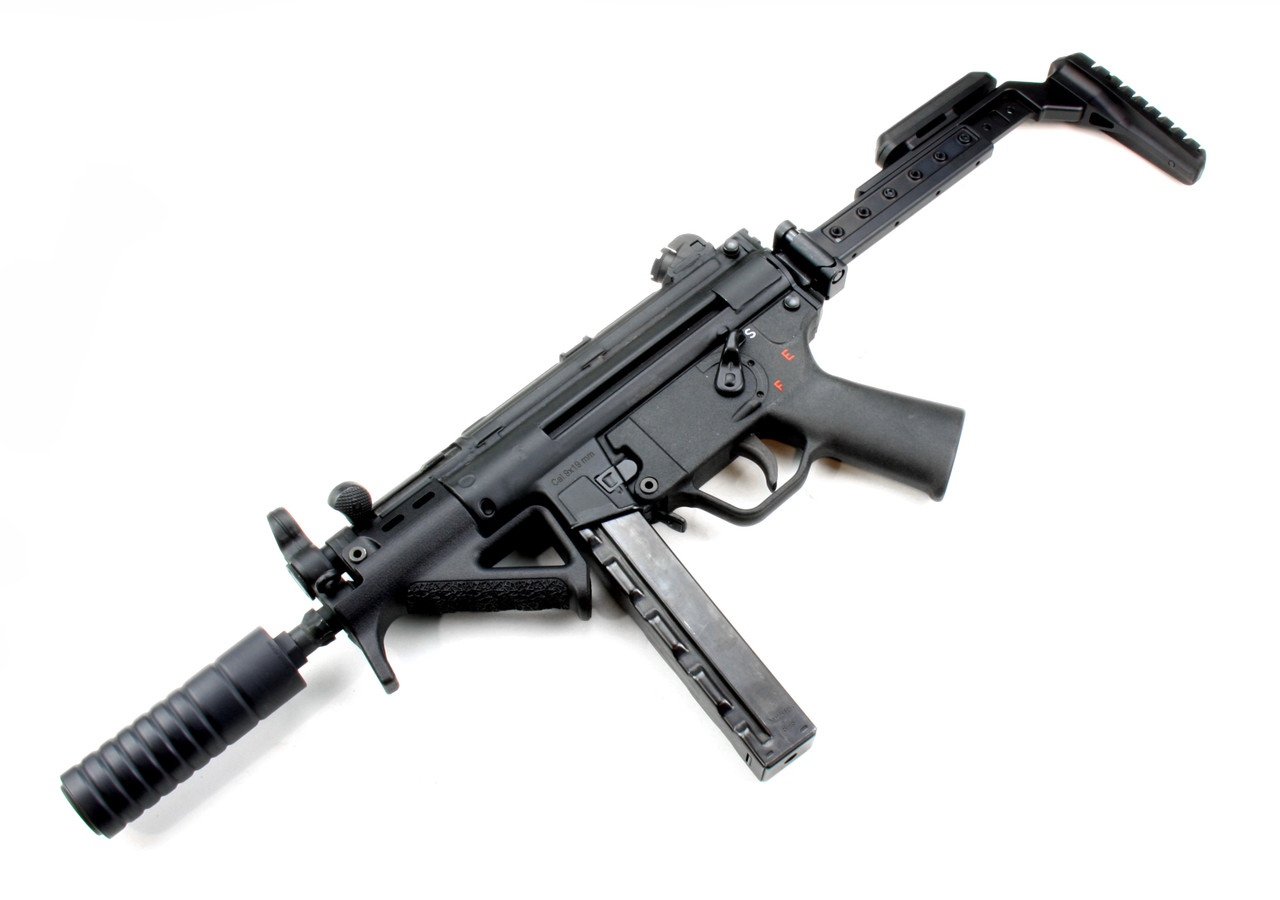

The ALM Adjustable Length Modular Folding Stocks are packed full of features. Available in straight or offset configurations, both variants have 5 length settings, a cheek riser with adjustable height and adjustable mounting positions, and a Quick-disconnect (QD) sling mounting socket - all standard when you buy the ALM folding brace.
Machined from 6061 aluminum, the ALM is very sturdy, with cogged connections at each adjustment point. This ensures a very rigid, rattle-free connection at any position.
ALM Stock Details:
- HD Steel APEX hinge with 1913 Picatinny interface, manufactured from 17-4 stainless with QPQ Nitride coating

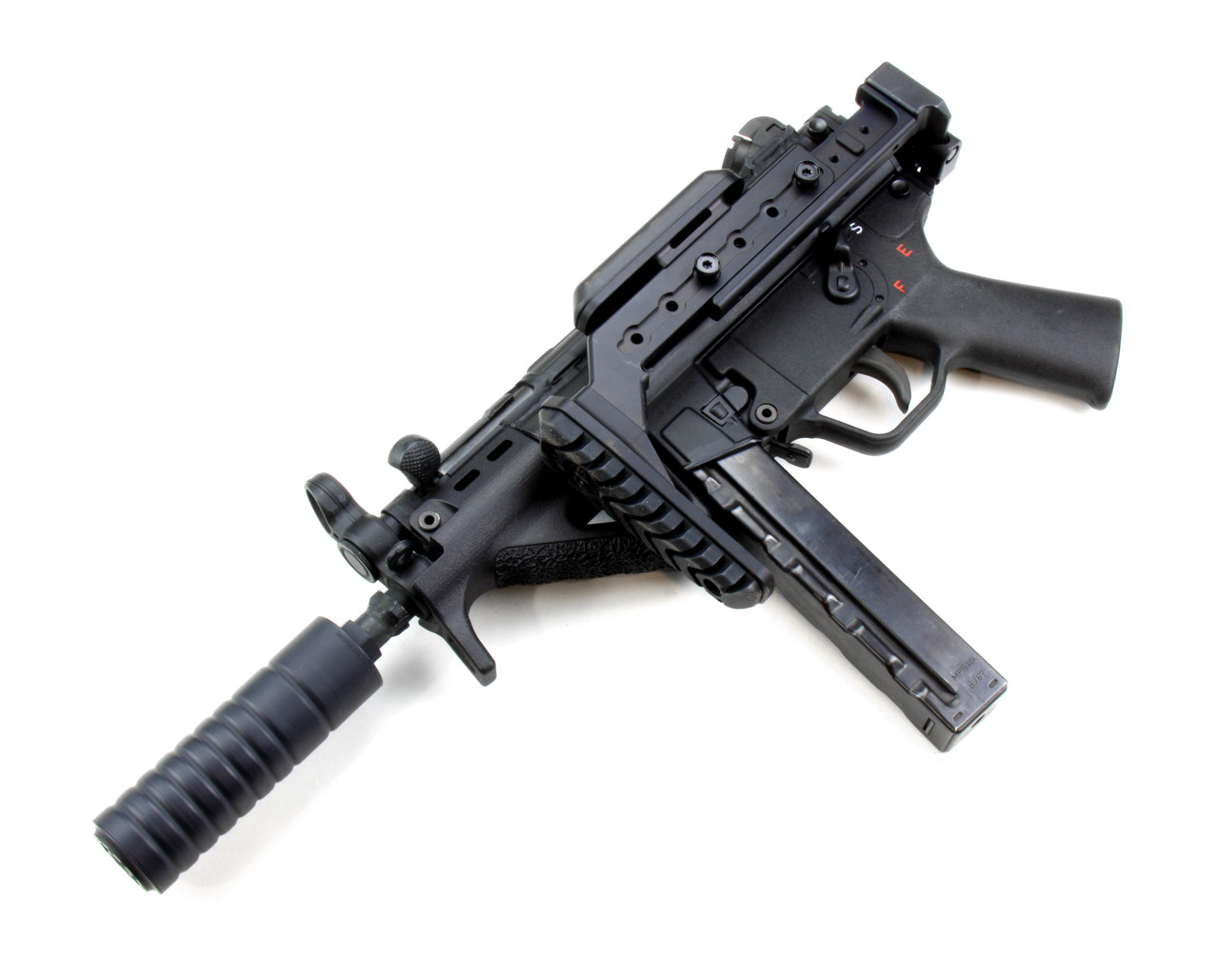

- Hinge can mount to fold left or right and has rapid-deploy feature
- 5-position adjustable length with cogged locking points
- User can choose the HD knurled thumb-screws OR low-profile screws for adjustment - both included.
- Your choice of Straight or Offset Extension arm
- Pedestal style XENO aluminum cheek riser with injection-molded polymer cheek rest
- Offset mounted cheek riser adjusts horizontally in 3 positions and can be flipped for extra adjustment
- 3-position vertical height adjustments on cheek riser - 7/8", 1-1/8", 1-3/8"
- Choice of 4 different Butt-plates, all with rubber butt-pads
- VIS steel Quick-disconnect socket for easy sling mounting - 6 mounting positions
Overall Length
*All measurements below are taken from the picatinny rail interface to the end of the stock with the hinge and butt-plate attached. Because the ALM is adjustable, the minimum and maximum lengths are listed for each configuration.
| Extension Type | A3T Butt-plate | Magpul #1 Butt-plate | Magpul #2 Butt-plate | Xtendo Butt-plate |
| Straight | 7-11/16" to 11-1/8" | 8-7/8" to 11-3/4" | 8-7/8" to 11-3/4" | 9-1/2" to 12-7/8" |
| Offset | 8-1/2" to 11-7/8" | 9-1/8" to 12-1/2" | 9-1/8" to 12-1/2" | 10-5/16" to 13-3/4" |
|
Extension arms: Choice of straight or offset extension arms. |
 |
| Mounting interface:

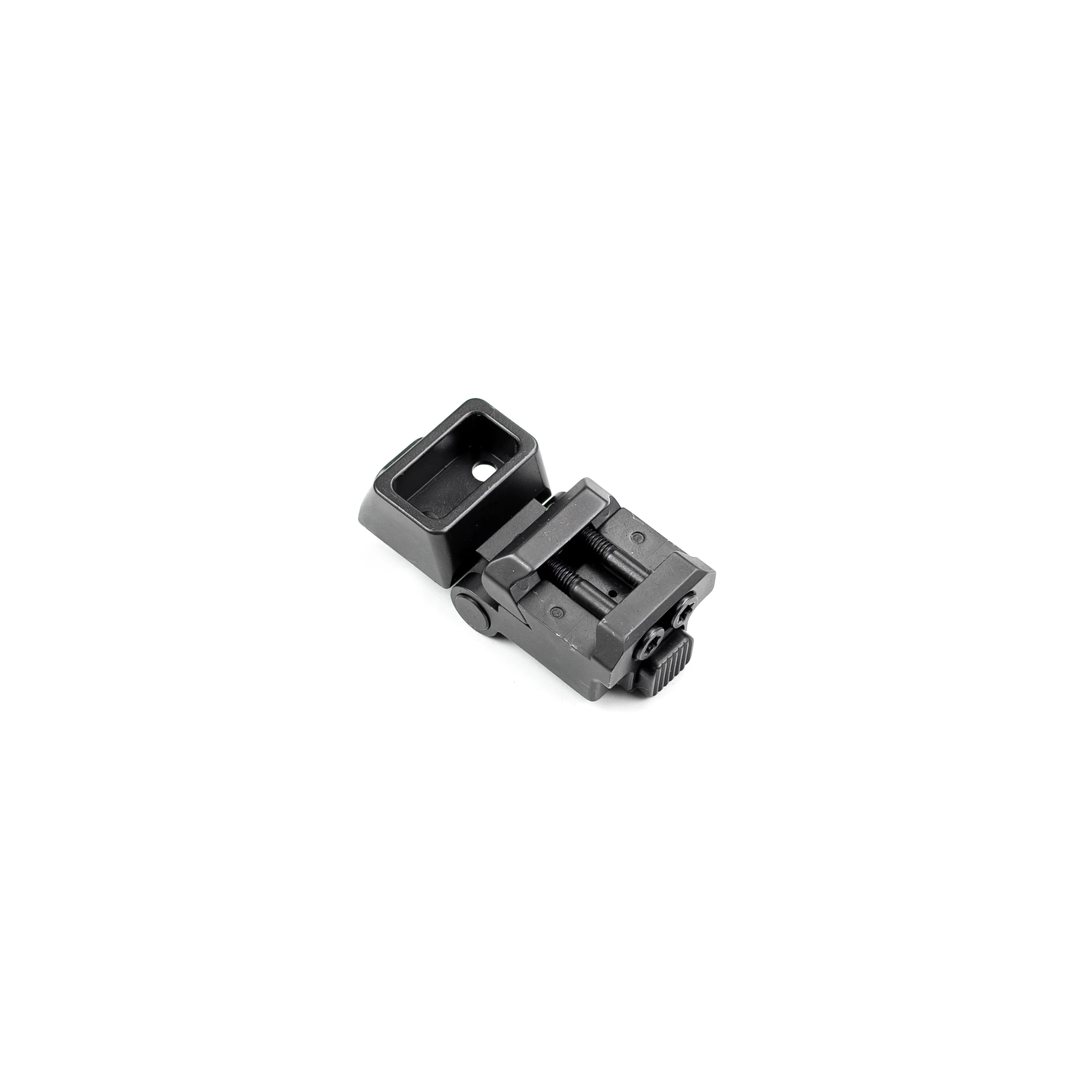

Sure-Lok 1913 Folding Hinge - Patent Pending The Sure-Lok™ Folding Hinge features 17-4 stainless steel MIM construction with a QPQ finish for strength, wear resistance, and corrosion protection. A push-button release allows controlled folding, while the quick-deploy design lets the stock snap into the deployed position with a firm pull, no extra steps required. Its compact, low-profile design mounts securely to any 1913 Picatinny rail using two cross-bolts for maximum rigidity, or a single centered cross-bolt when space is limited, delivering fast operation, durability, and repeatable performance. |
 |
| Cheek Riser: XENO modular cheek riser included. 3-height adjustments via cheek riser pad and 1/4" spacers. Heights of 7/8", 1-1/8", and 1-3/8" to work with just about any optic height. Can mount riser to either side of extension arm, in 3 different horizontal mounting positions. |  |
|

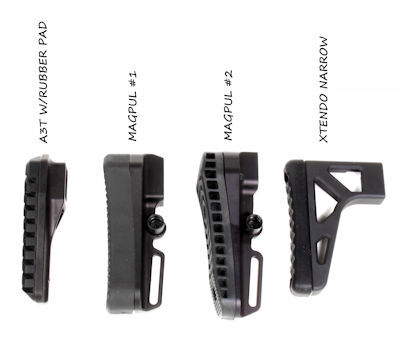

4 butt-plate options available: We have multiple butt-plate options for various requirements.
|
 |
| VIS Quick-disconnect (QD) socket: An optional steel QD socket is available if needed. These can mount to any of the adjustment holes on the side of the extension. |  |
